Safety Belt Retractor - Third Row, Outboard, Taurus X: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

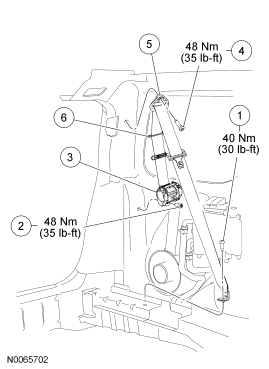

LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W504775 | Third row safety belt anchor bolt |
| 2 | N807750 | Third row safety belt retractor bolt |
| 3 | 612C17 | Third row safety belt retractor |
| 4 | - | Third row safety belt D-ring bolt |
| 5 | - | D-ring (part of 612C17) |
| 6 | - | Secondary safety belt guide (part of 612C17) |
