Safety Belt Retractor - Second Row, Outboard, Taurus X: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

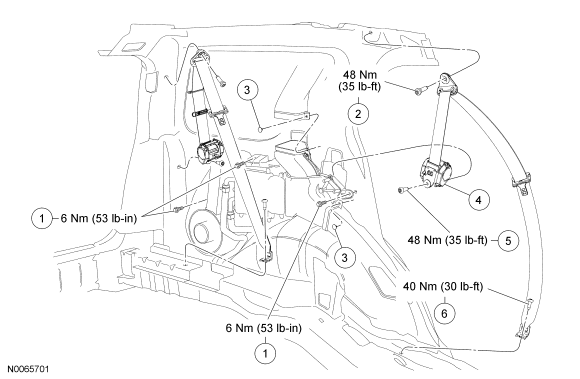

LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W505424 | Auxiliary climate control housing bolts (3 required) (if equipped) |
| 2 | - | Safety belt D-ring bolt (part of 611B69) |
| 3 | N803678 | Auxiliary climate control duct pin-type retainers (2 required) (if equipped) |
| 4 | 611B69 | Second row safety belt retractor |
| 5 | N807750 | Second row safety belt retractor bolt |
| 6 | W504775 | Second row safety belt anchor bolt |
