Safety Belt Retractor - Rear, Outboard, Taurus, Sable: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown in illustration, RH similar.

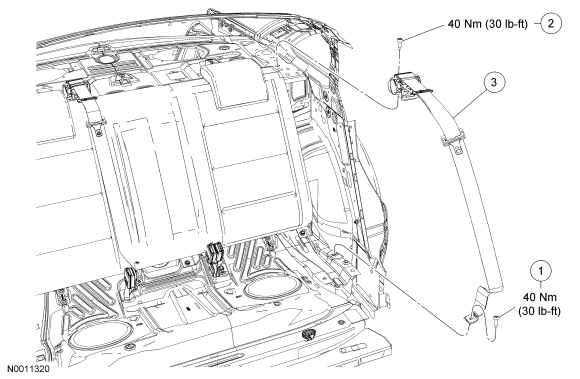

Fig 1: Exploded View Of Safety Belt Retractor With Torque Specifications - Rear, Outboard, Taurus, Sable
| Item | Part Number | Description |
|---|---|---|
| 1 | W504775 | Outboard safety belt anchor bolt |
| 2 | - | Outboard safety belt retractor bolt (part of 611B69) |
| 3 | 611B69 | Outboard safety belt retractor assembly |
