Safety Belt Retractor - Rear, Center, Taurus X: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

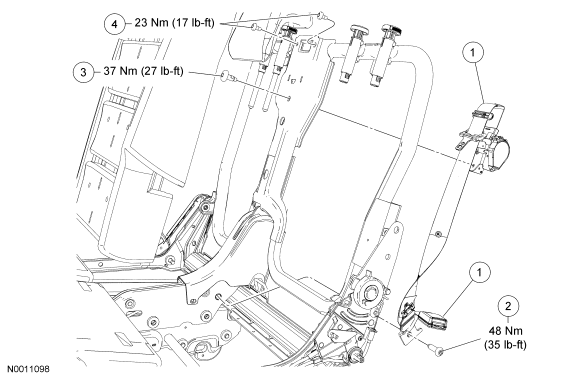

Fig 1: Exploded View Safety Belt Retractor With Torque Specifications - Rear, Center, Taurus X
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
60026
Safety belt retractor and safety belt buckle assembly
