Safety Belt Buckle - Third Row, 50 Percent: Notes

WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH shown in illustration, LH similar.

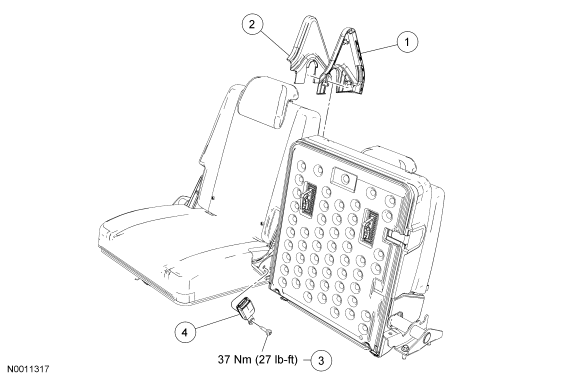

Fig 1: Exploded View Safety Belt Buckle With Torque Specification - Third Row, 50 Percent
GF0016708Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - LH outboard pivot cover
2 - RH outboard cover pivot cover
3 - RH safety belt buckle bolt
4 - RH safety belt buckle
