Child Safety Seat Tether Anchor - LATCH, Taurus, Sable: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

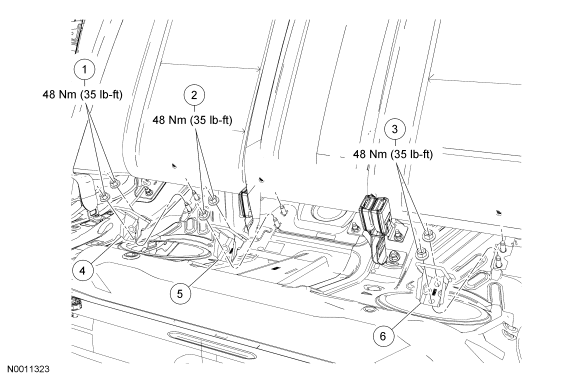

Fig 1: Exploded View Child Safety Seat Tether Anchor With Torque Specifications - LATCH, Taurus, Sable
| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH lower anchors and tethers for children nuts |
| 2 | - | Center lower anchors and tethers for children nuts |
| 3 | - | LH lower anchors and tethers for children nuts |
| 4 | - | RH lower anchors and tethers for children |
| 5 | - | Center lower anchors and tethers for children |
| 6 | - | LH lower anchors and tethers for children |
