Ignition Lock Cylinder: Notes

WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

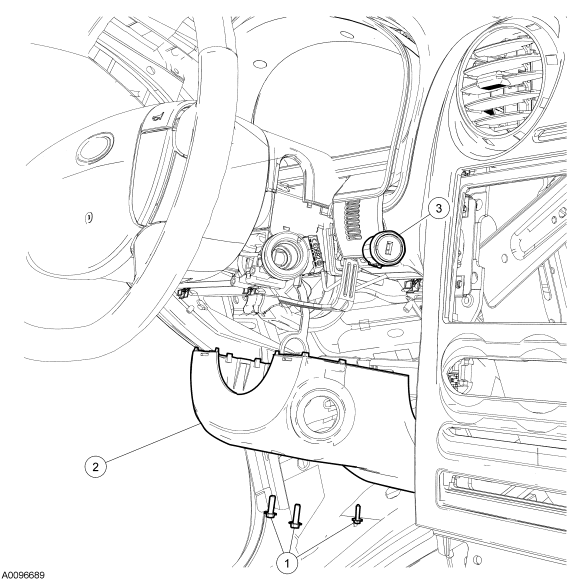

Fig 1: Exploded View Of Ignition Lock Cylinder

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706731	Lower steering column shroud screws (3 required)
2	3K512	Lower steering column shroud
3	11582	Ignition lock cylinder
