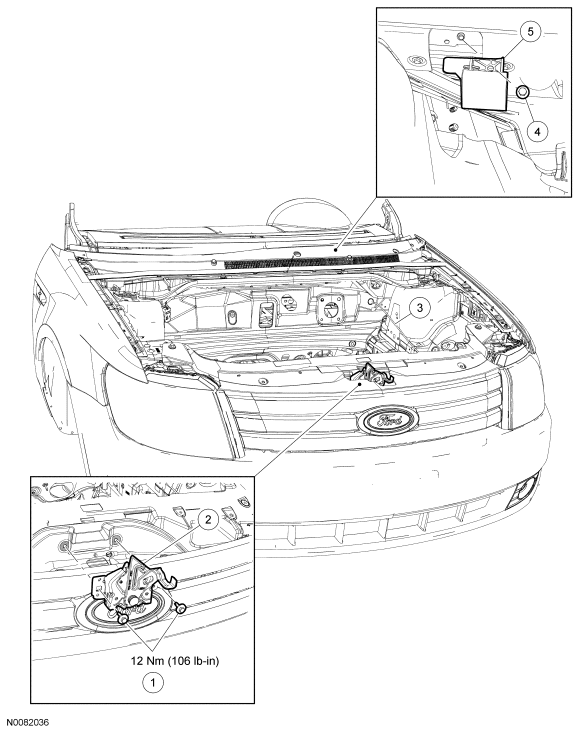

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Taurus shown in illustration, others similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | N808727-S | Hood latch bolts (2 required) |
| 2 | 16700 | Hood latch |
| 3 | - | Hood latch release cable (part of 16916) |
| 4 | W505424-S | Hood latch release handle bolt |
| 5 | 16916 | Hood latch release handle and cable assembly |
- For additional information, refer to the appropriate procedure.
