Removal And Installation: Liftgate: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item |
Specification |
Threadlock 262
TA-26 |
WSK-M2G351-A6 |
Courtesy of FORD MOTOR CO.

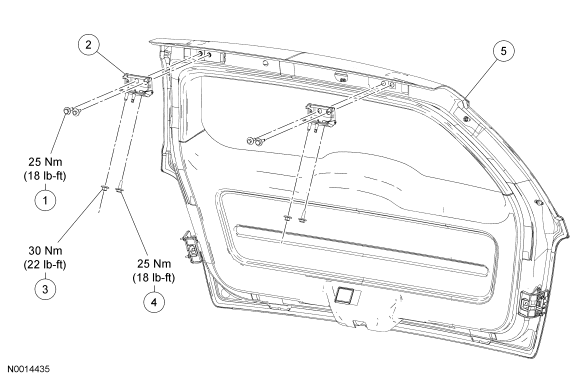

| Item |
Part Number |
Description |
| 1 |
W707108-S |
Liftgate hinge-to-liftgate bolt (4 required) |
| 2 |
7442900 |
Liftgate hinge |
| 3 |
N621940-S |
Liftgate hinge-to-body nut (2 required) |
| 4 |
W711262-S |
Liftgate hinge-to-body bolt (2 required) |
| 5 |
7440400 |
Liftgate |
