Removal And Installation: Door: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

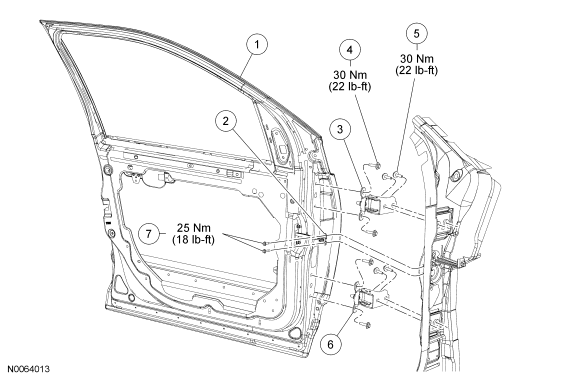

Front door shown in illustration, rear door similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Front door assembly |
| 2 | 7423552 RH/ 7423553 LH | Door check |
| 3 | 71564A | Upper hinge |
| 4 | W505433 | Hinge-to-door bolt (2 required per hinge) |
| 5 | W505433 | Hinge-to-body bolt (2 required per hinge) |
| 6 | 71564A | Lower hinge |
| 7 | W707426 | Door check-to-body bolts |
