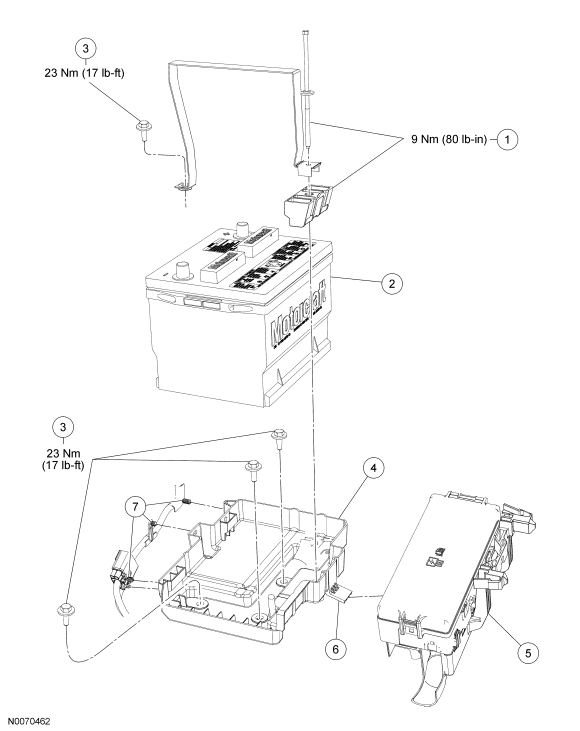

Battery and Battery Tray - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 10747 | Battery hold-down clamp and bolt |
| 2 | 10655 | Battery |
| 3 | N811453-S | Battery tray bolts (4 required) |
| 4 | 10723 | Battery tray |
| 5 | - | Power distribution box (PDB) |
| 6 | - | PDB fastener (part of 10723) |
| 7 | - | Wire harness fasteners (part of 14230) |
- For additional information, refer to the appropriate procedures.
