Halfshaft Seal - RH, Front Wheel Drive (FWD): Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Cover Axle Seal Installer | 307-582 | |
| Handle | 205-153 (T80T-4000-W) | |
| Remover, Front Wheel Hub | 205-D070 (D93P-1175-B) or equivalent |
MATERIAL
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

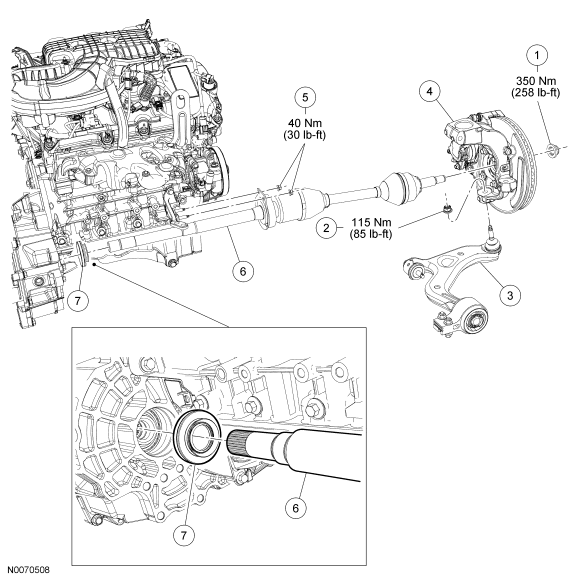

| Item | Part Number | Description |
|---|---|---|
| 1 | W705967 | Nut - halfshaft |
| 2 | W710015 | Nut - steering knuckle-to-lower control arm |
| 3 | 3042 | Lower control arm assembly |
| 4 | 7K170 | Steering knuckle assembly |
| 5 | W520413 | Nuts - halfshaft assembly (2 required) |
| 6 | 3B436 | Halfshaft assembly |
| 7 | 7H260 | Seal assembly - halfshaft |
