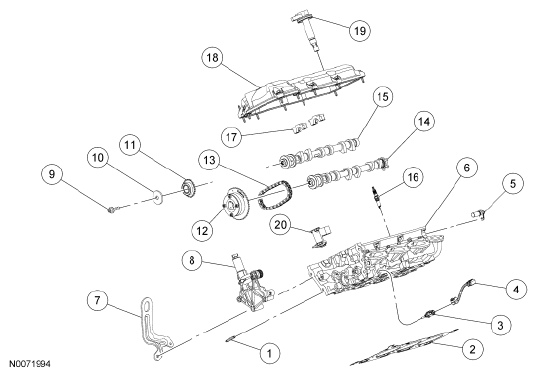

Engine Upper - RH Cylinder Head
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W712244 | RH exhaust manifold stud (6 required) |
| 2 | 6051 | RH cylinder head gasket |
| 3 | 6G004 | Cylinder Head Temperature (CHT) sensor |
| 4 | 14B485 | CHT sensor jumper harness |
| 5 | 6B288 | Camshaft Position (CMP) sensor (2 required) |
| 6 | 6049 | RH cylinder head |
| 7 | 17A084 | Engine lift eye |
| 8 | 6C260 | RH Variable Camshaft Timing (VCT) housing |
| 9 | 6279 | RH camshaft bolt (2 required) |
| 10 | W710738 | RH exhaust camshaft sprocket washer |
| 11 | 6256 | RH exhaust camshaft sprocket |
| 12 | 6C524 | RH VCT assembly |
| 13 | 6C256 | RH secondary timing chain |
| 14 | 6A266 | RH intake camshaft |
| 15 | 6A268 | RH exhaust camshaft |
| 16 | 12405 | Spark plug (6 required) |
| 17 | 6A258 | RH camshaft cap (8 required) |
| 18 | 6582 | RH valve cover |
| 19 | 12A375 | Coil-on-plug (6 required) |
| 20 | 6C270 | RH secondary timing chain tensioner |
