Removal And Installation

WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

All seats

  1. Remove the 40 percent rear seat. For additional information, refer to Seat - Rear, Second Row, Taurus X .
  2. Remove the 40 percent rear seat backrest. For additional information, refer to Seat Backrest - Second Row, 40 Percent, Taurus X .

    3. Power-fold seat

  3. Position the seat forward on the seat track and release the 2 forward trim cover side J-clips.
    4. Fig 1: Identifying J-Clips
    GF0045446Courtesy of FORD MOTOR CO.
  4. Release the hook-and-loop strips from the bottom side of the cushion trim cover.
    5. Fig 2: Identifying Hook And Loop Strips
    GF0045447Courtesy of FORD MOTOR CO.

    All seats

  5. Release the outer and inner J-clips at the rear of the cushion trim cover.
  6. Release the 2 cushion trim cover side retainers and remove from between the cushion frame and seat track.
    • Un-curl the retainer ends and push through the opening between the cushion frame and riser/seat track.
    7. Fig 3: Locating Cushion Trim Cover Retainers
    GF0016448Courtesy of FORD MOTOR CO.
  7. Remove the cushion trim cover and cushion foam pad assembly.
  8. Remove the screw and recliner handle.

    9. Power-fold seat

  9. Remove the outer recliner cover.
    • Remove the recliner cover screw.
    • Release and separate the outer and inner recliner covers.
    • Route the backrest release pull strap through the cover opening.
    10. WARNING: Use care when the seat back frame is removed and when releasing the recliners from a backrest upright position. The recliners are spring-loaded, which may cause the recliner upper arms to fold with significant speed/force. Failure to follow this instruction may result in serious personal injury.
    NOTE: Note cable routing and orientation for installation.
  10. With the recliner in the released (folded) position, detach the 3 cables.
    • Disconnect the power-fold seat motor cable from the recliner.
      • Rotate the cable end guide to release.
      • Disconnect the cable jacket from the cable clamp.
    • Detach the inboard and outboard latch cable jackets from the retainers.
    • Un-hook the inboard and outboard latch cable ends.

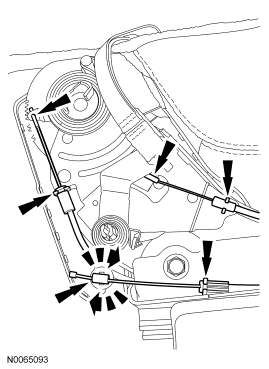

    11. Fig 4: Identifying Cables
    GF0045448Courtesy of FORD MOTOR CO.

    Manual seat

  11. Remove 2 screws, pull and remove the recliner outer cover.
    • Route the backrest release pull strap through the cover opening.
    12. WARNING: Use care when the seat back frame is removed and when releasing the recliners from a backrest upright position. The recliners are spring-loaded, which may cause the recliner upper arms to fold with significant speed/force. Failure to follow this instruction may result in serious personal injury.
    NOTE: Note cable routing for installation.
  12. Remove the 2 cables from the recliner and route them out of the seat cushion frame.

    13. All seats

  13. Remove the 6 cushion frame-to-seat track nuts and remove the seat track.
    • If equipped, detach the electrical connector from the seat track.
    • To install, tighten to 23 Nm (17 lb-ft).
  14. To install, reverse the removal procedure.
