Removal And Installation
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

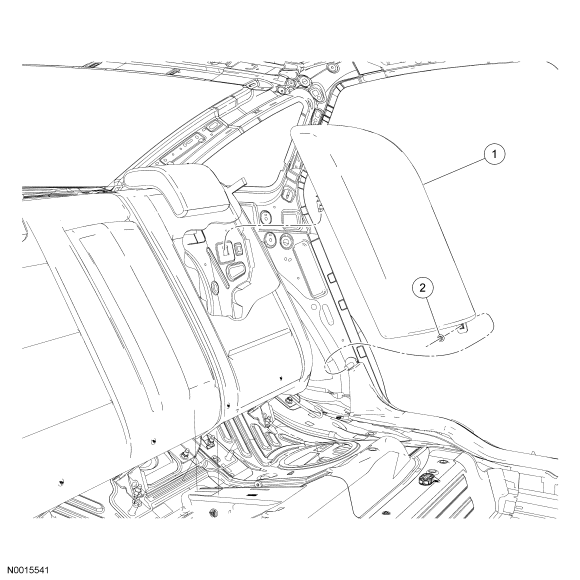

| Item | Part Number | Description |
|---|---|---|
| 1 | 66892 | Backrest bolster |
| 2 | N804795 | Bolster nut |
NOTE:
LH shown in illustration, RH similar.
All bolsters
- Remove the rear seat cushion. For additional information, refer to Seat Cushion - Rear, Taurus, Sable .
- Remove the nut from the lower retainer stud.
- To install, tighten to 8 Nm (71 lb-in).
- Separate the LH rear door weatherstrip at the seat backrest side bolster.
- Between the pinch weld and the LH scuff plate, pry out and release the side bolster lower retainer.
- Slide the LH side bolster up and out to remove.
- To install, reverse the removal procedure.
- When installing the side bolster, install a M6 x 1.0 nut on the lower retainer stud.
- Tighten to 8 Nm (71 lb-in).
- When installing the side bolster, install a M6 x 1.0 nut on the lower retainer stud.
Bolsters having been previously removed
All bolsters
