Wheel Speed Sensor - Rear, All Wheel Drive (AWD): Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

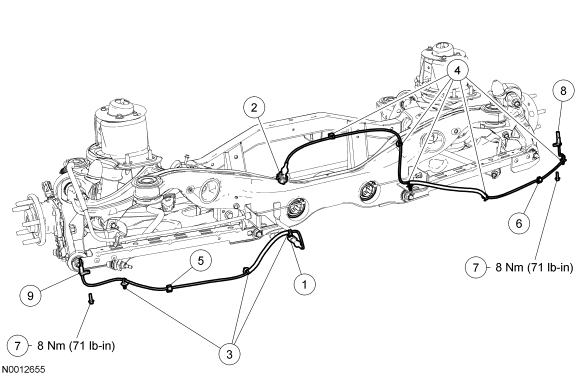

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wheel speed sensor electrical connector (part of 2C190) |
| 2 | - | Wheel speed sensor electrical connector (part of 2L216) |
| 3 | - | Wheel speed sensor harness pin-type retainers (part of 2C190) (3 required) |
| 4 | - | Wheel speed sensor harness pin-type retainers (part of 2L216) (5 required) |
| 5 | - | Wheel speed sensor harness spring clip (part of 2C190) |
| 6 | - | Wheel speed sensor harness spring clip (part of 2L216) |
| 7 | W709792 | Wheel speed sensor bolts |
| 8 | 2L216 | Wheel speed sensor |
| 9 | 2C190 | Wheel speed sensor |
