Brake Booster: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

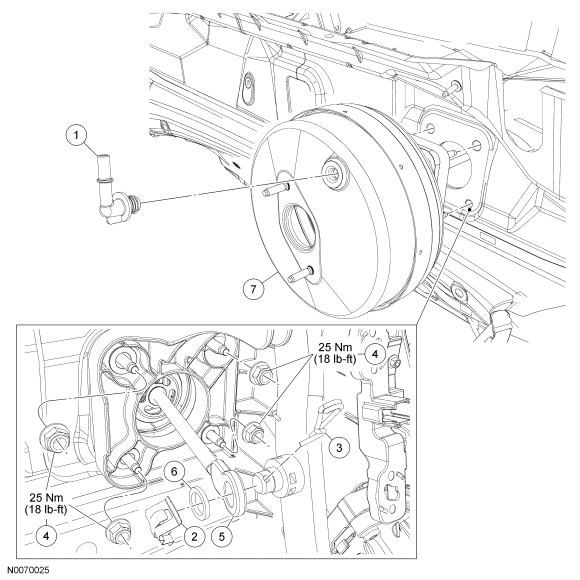

| Item |
Part Number |
Description |
| 1 |
9D443A |
Brake booster vacuum fitting |
| 2 |
3757 |
Redundant self-locking pin cover |
| 3 |
380699 |
Self-locking pin |
| 4 |
W520112 |
Brake booster nuts (4 required) |
| 5 |
- |
Brake booster rod (part of 2005) |
| 6 |
2B129 |
Brake booster rod washer |
| 7 |
2005 |
Brake booster |
