Removal And Installation: Halfshaft: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Front Hub Remover | 205-D070 (D93P-1175-B) or equivalent | |
| Axle Seal Protector | 205-816 |

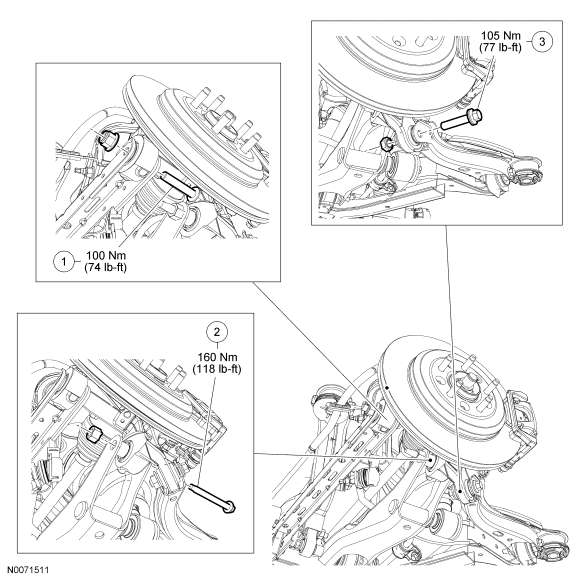

| Item | Part Number | Description |
|---|---|---|
| 1 | W708737 | Toe link-to-knuckle bolt |
| 2 | W709125 | Lower arm-to-knuckle bolt |
| 3 | W708735 | Trailing arm-to-knuckle bolt |

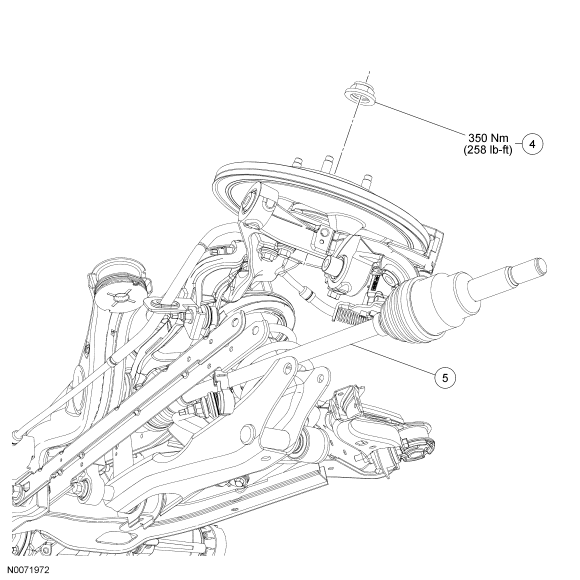

| Item | Part Number | Description |
|---|---|---|
| 4 | W712435 S439 | Wheel hub nut |
| 5 | - | Halfshaft |
