Wheel Knuckle - Front Wheel Drive (FWD): Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

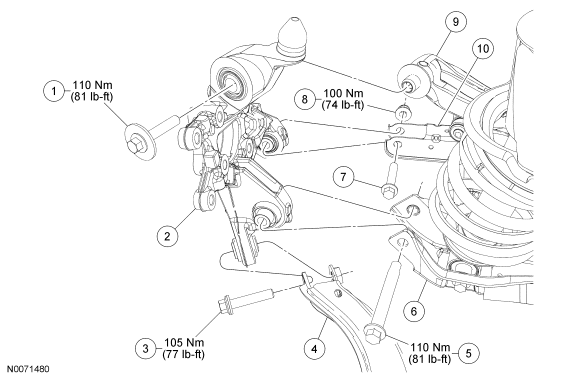

| Item | Part Number | Description |
|---|---|---|
| 1 | W709443 | Upper arm-to-wheel knuckle bolt |
| 2 | 4A493 | Wheel knuckle |
| 3 | W708748 | Trailing arm-to-wheel knuckle bolt |
| 4 | 5500 | Trailing arm |
| 5 | W709125 | Lower arm-to-wheel knuckle bolt |
| 6 | 5500 | Lower arm |
| 7 | W708737 | Toe link-to-wheel knuckle bolt |
| 8 | W520214 | Toe link-to-wheel knuckle nut |
| 9 | 5A649 | Upper arm |
| 10 | 5500 | Toe link |
