Wheel Knuckle - All Wheel Drive (AWD): Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Separator, Ball Joint | 204-592 | |
| Adapter for 204-592 | 204-592/1 |

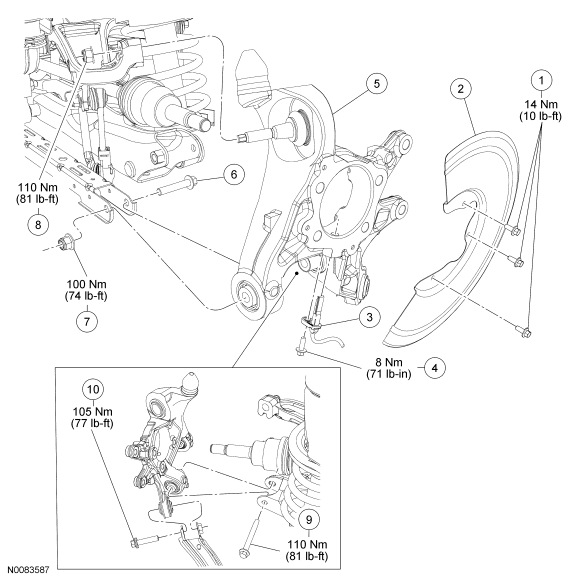

| Item | Part Number | Description |
|---|---|---|
| 1 | W505255 | Brake disc shield bolts (3 required) |
| 2 | 2C508 RH/ 2C509 LH | Brake disc shield |
| 3 | 2C190 LH/ 2C216 RH | Wheel speed sensor |
| 4 | W709729 | Wheel speed sensor bolt |
| 5 | 5A968 | Wheel knuckle |
| 6 | W708737 | Toe-link-to-wheel knuckle bolt |
| 7 | W520214 | Toe-link-to-wheel knuckle nut |
| 8 | - | Upper arm ball joint nut |
| 9 | W709125 | Lower arm-to-wheel knuckle bolt |
| 10 | W070874 | Trailing arm-to-wheel knuckle bolt |
