Trailing Arm: Notes
WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

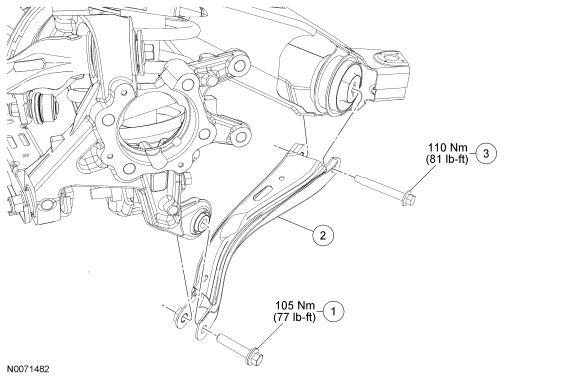

NOTE:
Front Wheel Drive (FWD) shown in illustration, All-Wheel Drive (AWD) similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W708748 |
Trailing arm-to-wheel knuckle bolt |
| 2 |
5500 |
Trailing arm |
| 3 |
W710024 |
Trailing arm-to-subframe bolt |
