Lower Arm: Notes

WARNING: This page is about a different car, the 2009 Mercury Sable, 2009 Ford Taurus X, and 2009 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

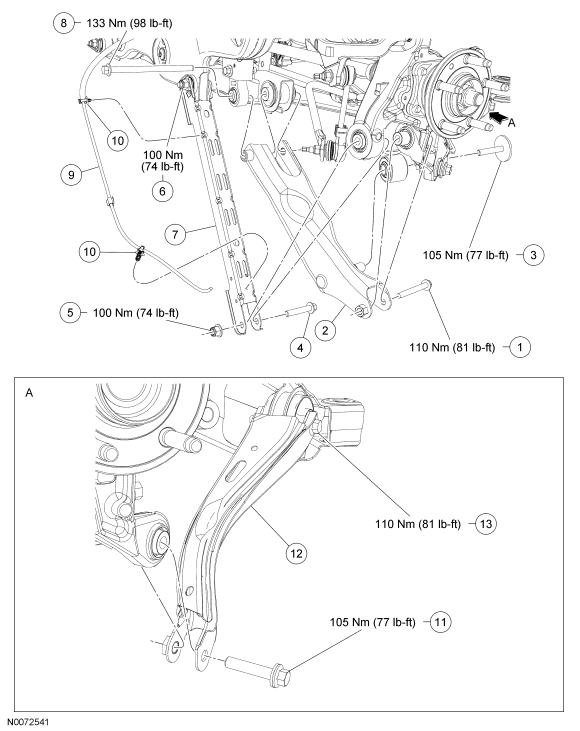

Fig 1: Lower Arm Components - All-Wheel Drive (AWD) Vehicles With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709125	Lower arm-to-wheel knuckle bolt
2	5500	Lower arm
3	W710804	Shock absorber lower bolt
4	W708737	Toe link-to-wheel knuckle bolt
5	W520214	Toe link-to-wheel knuckle nut
6	5K978	Toe link-to-subframe nut
7	5500	Toe link
8	W709720	Lower arm-to-subframe bolt
9	2C216	Wheel speed sensor harness
10	-	Wheel speed sensor harness clips (part of 2C216) (2 required)
11	W070874	Trailing arm-to-wheel knuckle bolt
12	5500	Trailing arm
13	W710024	Trailing arm-to-subframe front bolt

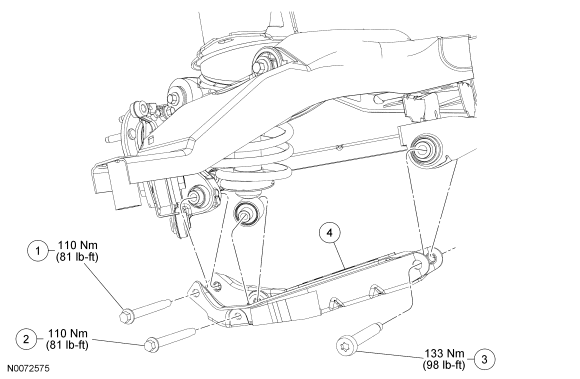

Fig 2: Lower Arm Components - Front Wheel Drive (FWD) Vehicles With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709125	Lower arm-to-wheel knuckle bolt
2	W709125	Shock absorber lower bolt
3	W710038	Lower arm-to-subframe bolt
4	5500	Lower arm
