Crossmember - Number 2: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Support Bar, Engine | 303-F072 | |
| Support Bar, Engine | 303-639 |

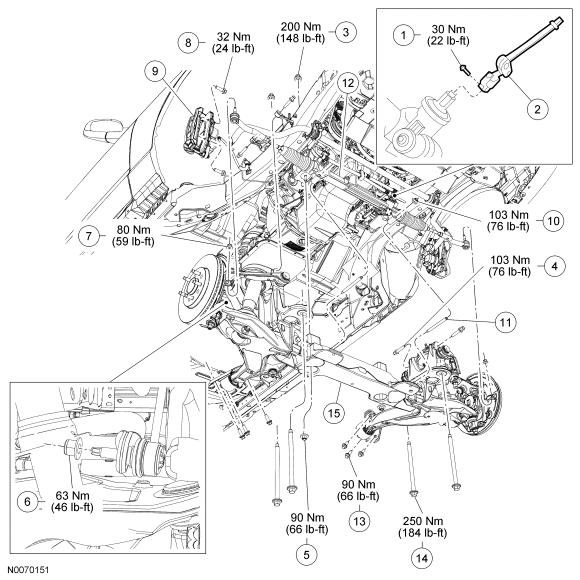

| Item | Part Number | Description |
|---|---|---|
| 1 | N808349 | Intermediate shaft bolt |
| 2 | 3B676 | Intermediate shaft |
| 3 | N804431 | Crossmember bracket nuts (4 required) |
| 4 | W709882 | Crossmember bracket bolts (4 required) |
| 5 | W707492 | Engine mount nuts (2 required) |
| 6 | W520213 | Stabilizer bar link nuts (2 required) |
| 7 | W520214 | Outer tie-rod end nuts (2 required) |
| 8 | 2N386 | Brake caliper bolts (4 required) |
| 9 | 2B120 RH/ 2B121 LH | Brake calipers (2 required) |
| 10 | W707492 | Steering gear nuts (2 required) |
| 11 | W707972 | Steering gear studs (2 required) |
| 12 | 3504 | Steering gear |
| 13 | W708601 | Lower control arm rear mounting bolts (6 required) |
| 14 | W707968 | No. 2 crossmember bolts (4 required) |
| 15 | 5C145 | No. 2 crossmember |
