Removal And Installation: Fender: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

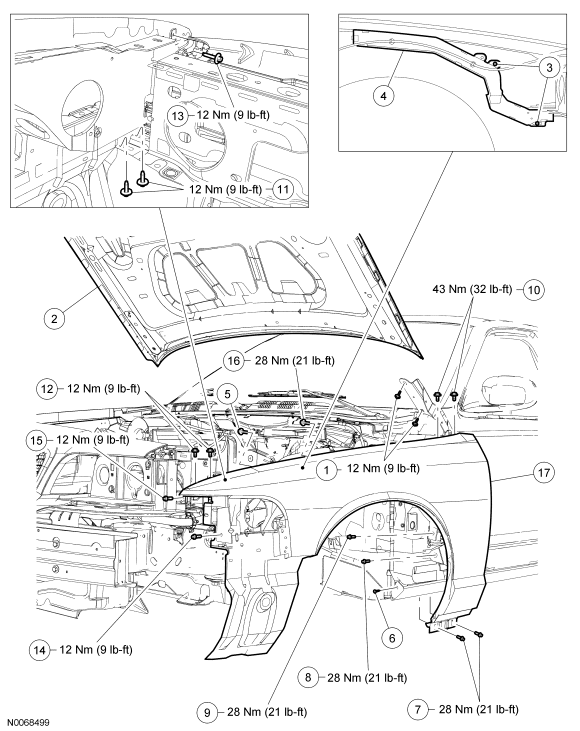

| Item | Part Number | Description |
|---|---|---|
| 1 | N606677 | Hood hinge-to-hood bolts (4 required) |
| 2 | 16612 | Hood |
| 3 | W704873 | Wiring trough screws (2 required) |
| 4 | - | Wiring trough (part of 14290) |
| 5 | - | Ground wire bolt (2 required) |
| 6 | N803946 | Rocker panel pin-type retainer |
| 7 | N807316 | Rocker panel fender bolts (2 required) |
| 8 | N807316 | Rear fender bolt (2 required) |
| 9 | N807316 | Rear fender brace bolt |
| 10 | N807316 | Upper rear fender bolts (2 required) |
| 11 | N807316 | Lower front fender bolts (2 required) |
| 12 | N807316 | Fender-to-radiator support bolts (2 required) |
| 13 | N606678 | Radiator grille opening panel bolt |
| 14 | N808623 | Fender front bolt |
| 15 | N807316 | Fender radiator grille opening panel front bolt |
| 16 | N602480 | Fender rear inner bolt |
| 17 | 16005/6 | Fender |
