Cowl Panel Grille: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

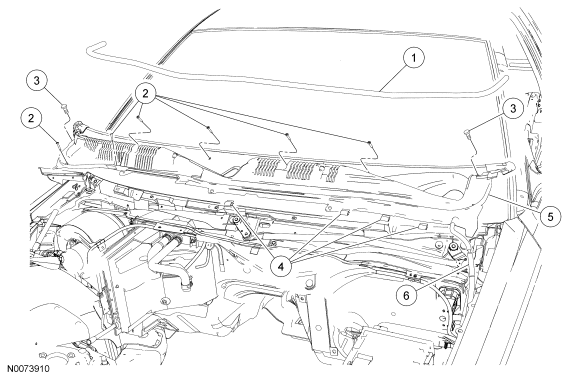

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cowl panel grille weather seal (part of 02228) |
| 2 | N610021 | Cowl panel grille screws (6 required) (part of 02228) |
| 3 | 391349 | Cowl panel grille pin-type retainers (2 required) (part of 02228) |
| 4 | N805886 | Cowl panel grille retainer clips (5 required) |
| 5 | 02222 | Cowl panel grille |
| 6 | - | Washer hose union (part of 17K605) |
