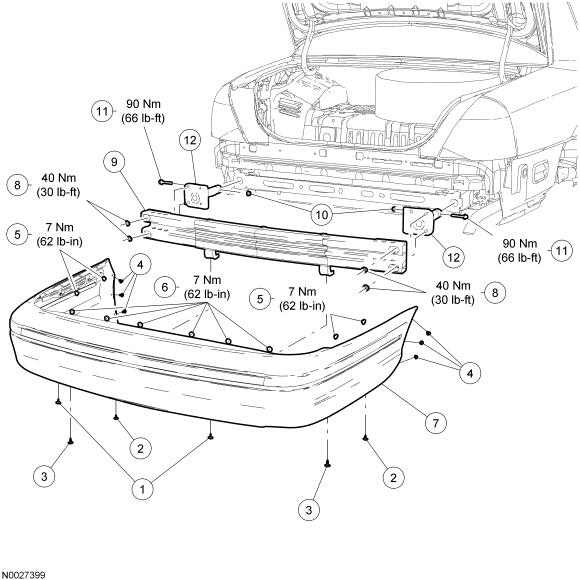

Bumper - Exploded View, Rear
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W707938 | Rear bumper cover screws (2 required) |
| 2 | W707938 | Rear bumper cover screws (2 required) |
| 3 | 388930 | Rear bumper cover pin-type retainers (2 required) |
| 4 | 390018 | Rear bumper cover pin-type retainers (6 required) |
| 5 | N621927 | Rear bumper cover nuts (4 required) |
| 6 | N621927 | Rear bumper cover nuts (6 required) |
| 7 | 17K835 | Rear bumper cover |
| 8 | W709361 | Rear bumper nuts (4 required) |
| 9 | 17775 | Rear bumper |
| 10 | N800169 | Rear bumper bracket nuts (2 required) |
| 11 | N811799 | Rear bumper bracket bolts (2 required) |
| 12 | 17D788 RH/ 17D864 LH | Rear bumper brackets |
- For additional information, refer to the appropriate procedures.
