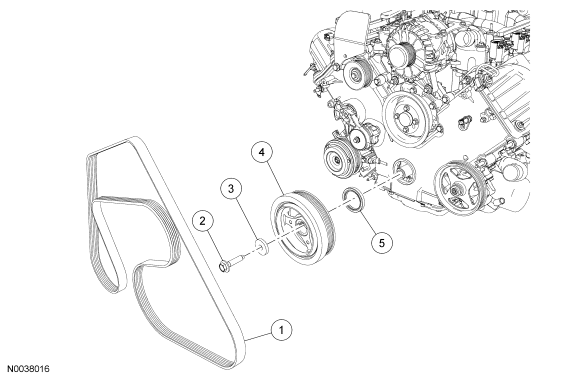

Lower End Components - Exploded View, Crankshaft Pulley And Crankshaft Front Seal
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8620 |
Accessory drive belt |
| 2 |
W701512 |
Crankshaft pulley bolt |
| 3 |
N806165 |
Crankshaft pulley bolt washer |
| 4 |
6316 |
Crankshaft pulley |
| 5 |
6700 |
Crankshaft front seal |
- For additional information, refer to the appropriate procedures.
