Exhaust Manifold - RH: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

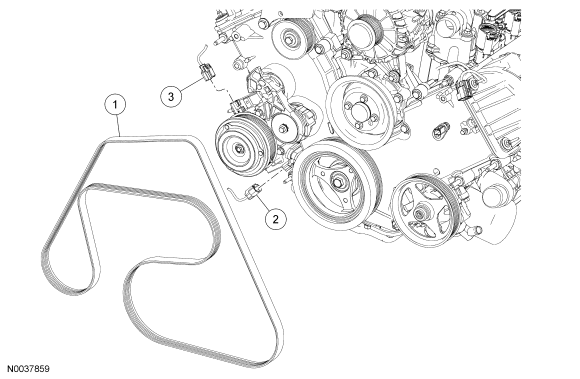

Fig 1: Accessory Drive Belt

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8620	Accessory drive belt
2	14A464	Crankshaft Position (CKP) sensor electrical connector (part of 12B637)
3	14A464	A/C compressor electrical connector (part of 12B637)

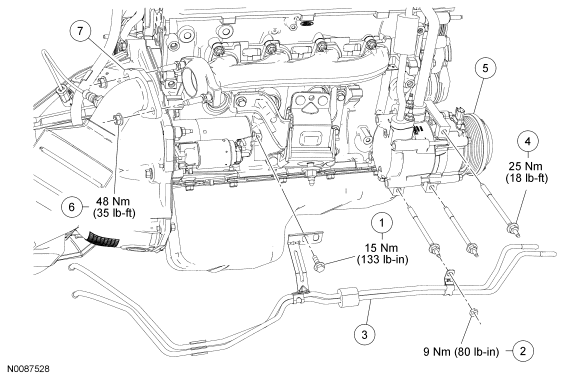

Fig 2: RH Exhaust Manifold Components With Torque Specifications (1 of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N807218	Transmission cooler tube bracket bolt
2	W705443	Transmission cooler tube bracket nut
3	7H420	Transmission cooler tube assembly
4	W707821	A/C compressor stud bolt (3 required)
5	19D629	A/C compressor
6	N811485	Catalytic converter-to-exhaust manifold nut (2 required)
7	5F250	Catalytic converter flange

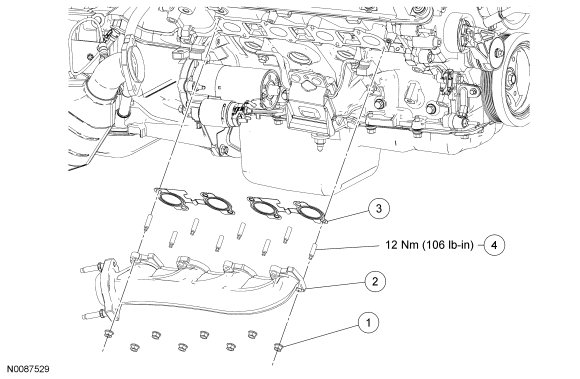

Fig 3: RH Exhaust Manifold Components With Torque Specifications (2 of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701706	Exhaust manifold nut (8 required)
2	9430	Exhaust manifold
3	9Y431	Exhaust manifold gasket (2 required)
4	W707747	Exhaust manifold stud (8 required)
