Exhaust Manifold - LH: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

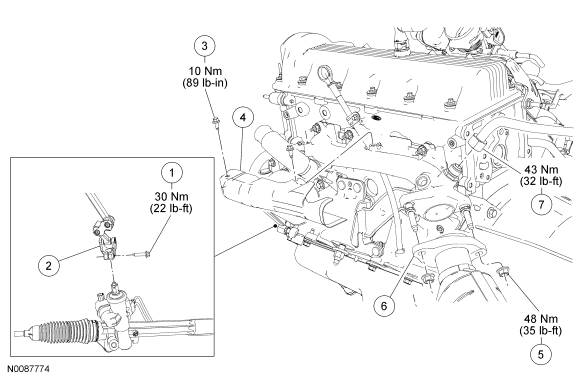

Fig 1: LH Exhaust Manifold Components With Torque Specifications (1 of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W710821	Intermediate steering shaft pinch bolt
2	3C662	Intermediate steering shaft
3	W707130	Exhaust manifold heat shield bolt (2 required)
4	9Y427	Exhaust manifold heat shield
5	N811485	Catalytic converter-to-exhaust manifold nut (2 required)
6	5F250	Catalytic converter flange
7	9D477	EGR system module tube

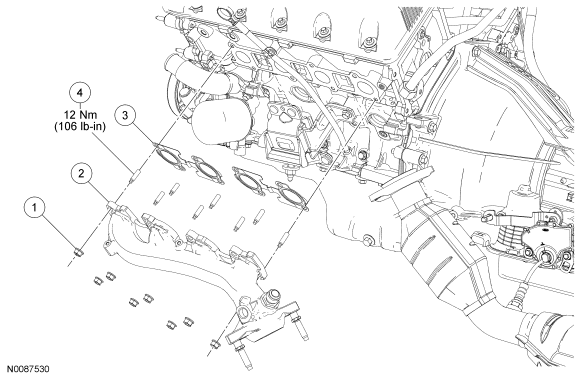

Fig 2: LH Exhaust Manifold Components With Torque Specifications (2 of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701706	Exhaust manifold nut (8 required)
2	9431	Exhaust manifold
3	9Y431	Exhaust manifold gasket (2 required)
4	W707747	Exhaust manifold stud (8 required)
