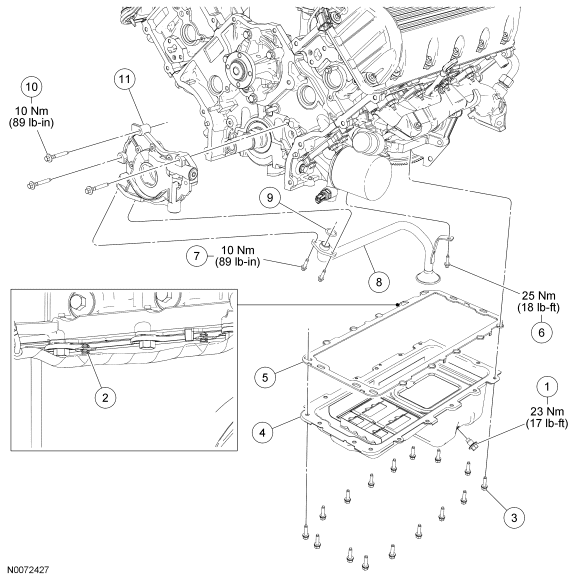

Engine Lubrication Components - Exploded View, Oil Pan, Oil Pump, Oil Pump Screen And Pickup Tube
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6730 | Oil pan drain plug |
| 2 | - | Pin-type wire harness retainer (part of 12B637) (2 required) |
| 3 | W701605 | Oil pan bolt (16 required) |
| 4 | 6675 | Oil pan |
| 5 | 6710 | Oil pan gasket |
| 6 | N605904 | Oil pump screen and pickup tube-to-spacer bolt |
| 7 | N806155 | Oil pump screen and pickup tube-to-oil pump bolt (2 required) |
| 8 | 6622 | Oil pump screen and pickup tube |
| 9 | 6625 | Oil pump screen and tube O-ring seal |
| 10 | N806183 | Oil pump bolt (3 required) |
| 11 | 6621 | Oil pump |
- For additional information, refer to the appropriate procedures.
