Cooling Fan Motor & Shroud: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N606676 |
Power steering reservoir bolt |
| 2 |
3531 |
Power steering reservoir |
| 3 |
8W005 |
Degas bottle overflow hose |
| 4 |
8B273 |
Degas bottle supply hose |
| 5 |
W505424 |
Degas bottle bolt |
| 6 |
8A080 |
Degas bottle |

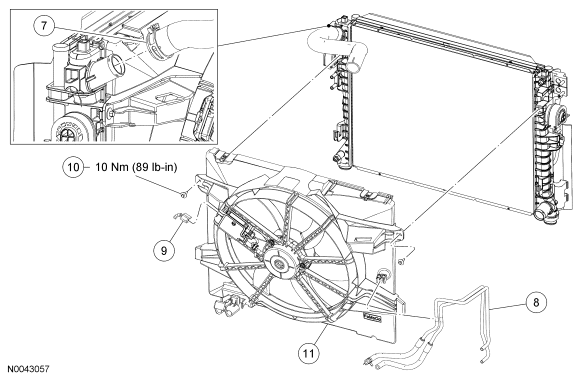

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 7 |
8B274 |
Upper radiator hose |
| 8 |
7T028 |
Transmission cooler tubes |
| 9 |
14A464 |
Cooling fan electrical connector |
| 10 |
N606676 |
Cooling fan motor and shroud bolt (2 required) |
| 11 |
8C607 |
Cooling fan motor and shroud |
