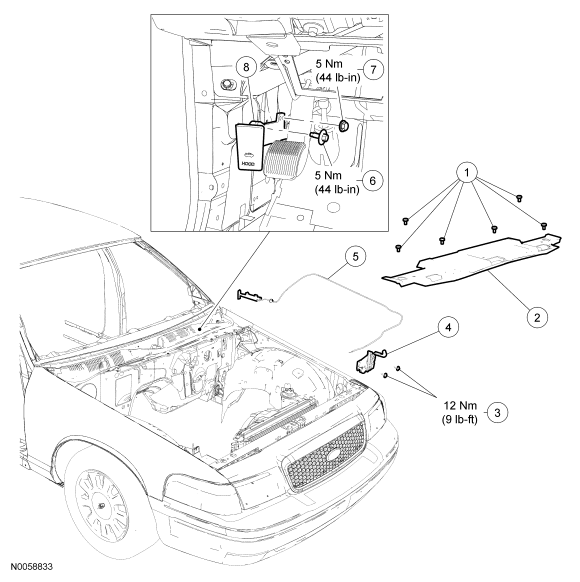

Hood Latch & Components - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706519 | Pin-type retainers (6 required) |
| 2 | 8C291 | Radiator sight shield |
| 3 | N811859-S439 | Hood latch bolts (2 required) |
| 4 | 16700 | Hood latch |
| 5 | - | Hood latch release cable and handle (part of 16916) |
| 6 | W611104 | Hood latch release cable handle bolt |
| 7 | N620480 | Hood latch release cable handle nut |
| 8 | 16916 | Hood latch release handle |
- For additional information, refer to the appropriate procedures.
