Door Lock Control Switch: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

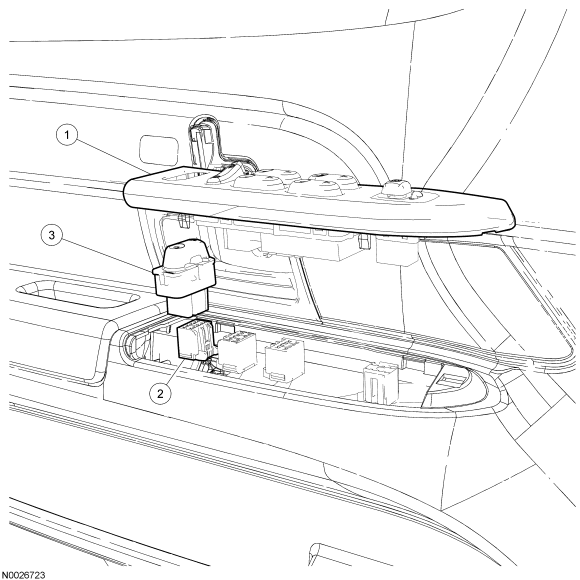

Fig 1: Exploded View Of Door Lock Control Switch
GF0013261Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14527/14528 Door switch plate (RH/LH)
2 - Door lock switch electrical connector (part of 14005)
3 14028 Door lock control switch
