Differential Bearings: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 205-S127 | 205-105 (T76P-4020-A3) | |
| Adapter for 205-S127 | 205-109 (T76P-4020-A9) | |
| Adapter for 205-S127 | 205-110 (T76P-4020-A10) | |
| Adapter for 205-S127 | 205-129 (T79P-4020-A18) | |
| Adapter for 205-S127 | 205-130 (T79P-4020-A19) | |
| Dial Indicator with Holding Fixture | 100-002 (TOOL-4201-C) | |
| Handle | 205-111 (T76P-4020-A11) | |
| Holding Fixture, Drive Pinion Flange | 205-126 (T78P-4851-A) | |
| Installer, Differential Side Bearing | 205-010 (T57L-4221-A2) | |
| Installer, Drive Pinion Bearing Cone | 205-005 (T53T-4621-C) | |
| Installer, Drive Pinion Bearing Cup | 205-024 (T67P-4616-A) | |
| Installer, Drive Pinion Flange | 205-002 (TOOL-4858-E) | |
| Installer, Drive Pinion Oil Seal | 205-208 (T83T-4676-A) | |
| Plate, Bearing Oil Seal | 205-090 (T75L-1165-B) | |
| Protector, Drive Pinion Thread | 205-460 | |
| Puller, Bearing | 205-D064 (D84L-1123-A) or equivalent | |
| Shim Driver | 205-220 (T85L-4067-AH) | |
| Step Plate | 205-D061 (D83T-4205-C2) | |
| 2-Jaw Puller | 205-D072 (D79L-4221-A1) |

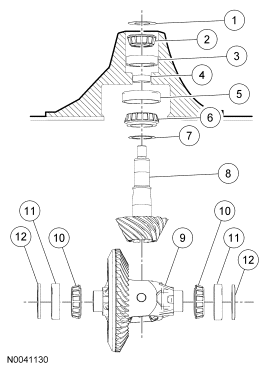

| Item | Part Number | Description |
|---|---|---|
| 1 | 4670 | Differential pinion shaft oil slinger |
| 2 | 4621 | Differential pinion bearing |
| 3 | 4616 | Differential pinion bearing cup |
| 4 | 4662 | Differential pinion collapsible sleeve |
| 5 | 4628 | Differential pinion bearing cup |
| 6 | 4630 | Differential pinion bearing |
| 7 | 4663 | Differential pinion bearing shim |
| 8 | - | Differential pinion |
| 9 | - | Differential carrier assembly |
| 10 | 4221 | Differential bearings |
| 11 | 4222 | Differential bearing cups |
| 12 | 4067 | Differential bearing shims |
