Engine Ignition Components - Exploded View
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

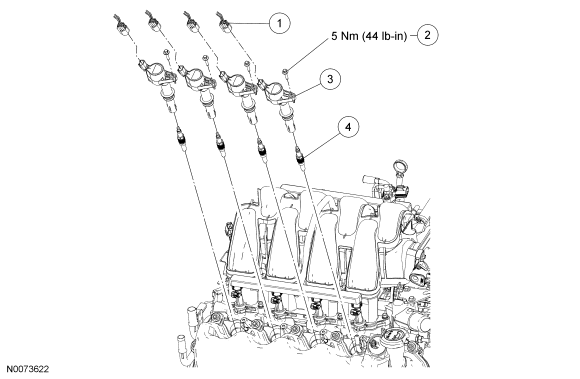

| Item |
Part Number |
Description |
| 1 |
14A464 |
Ignition coil-on-plug electrical connector (4 required) |
| 2 |
W706175 |
Ignition coil-on-plug bolt (4 required) |
| 3 |
12A366 |
Ignition coil-on-plug (4 required) |
| 4 |
12405 |
Spark plug (4 required) |
Courtesy of FORD MOTOR CO.

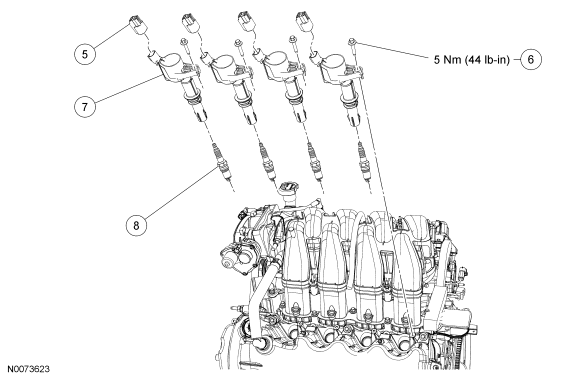

| Item |
Part Number |
Description |
| 5 |
14A464 |
Ignition coil-on-plug electrical connector (4 required) |
| 6 |
W706175 |
Ignition coil-on-plug bolt (4 required) |
| 7 |
12A366 |
Ignition coil-on-plug (4 required) |
| 8 |
12405 |
Spark plug (4 required) |
- For additional information, refer to the appropriate procedures.
