Removal And Installation: Radiator: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

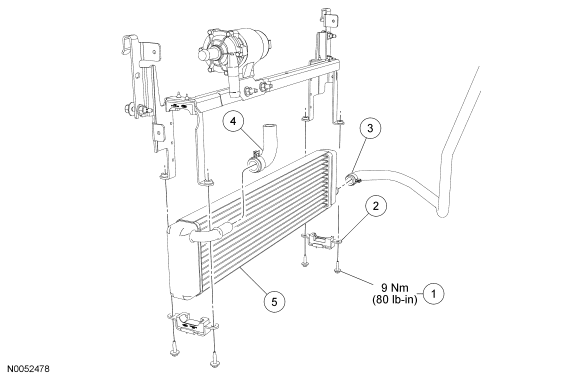

| Item |
Part Number |
Description |
| 1 |
W505424 |
Radiator bracket bolt (4 required) |
| 2 |
8K243 |
Radiator bracket (2 required) |
| 3 |
8D030 |
Radiator-to-charge air cooler (CAC) hose |
| 4 |
8K236 |
Radiator-to-coolant pump hose |
| 5 |
8K229 |
Radiator |
