Transmission Rear Support Insulator
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

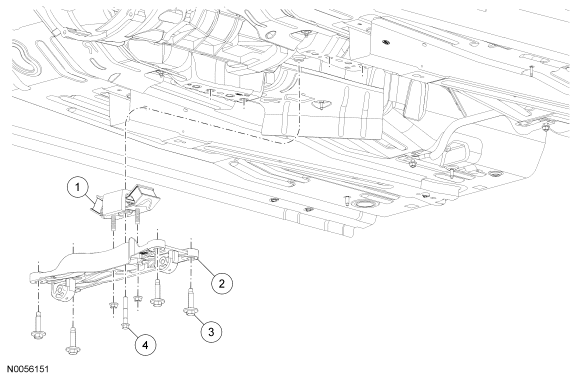

| Item | Part Number | Description |
|---|---|---|
| 1 | 6068 | Transmission rear support insulator |
| 2 | 6068 | Transmission mount |
| 3 | W505466-S439 | Transmission mount outer bolts (4 required) |
| 4 | N804518-S439 | Transmission rear support insulator center bolt |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
- Using a suitable transmission jack, support the transmission.
- Loosen the 2 transmission rear support insulator nuts.
- Remove the 4 transmission mount outer bolts.
- To install, tighten to 63 Nm (46 lb-ft).
- Remove the transmission rear insulator center bolt. Carefully pry the exhaust brackets from the exhaust insulators on the rear transmission mount. Remove the transmission mount.
- To install, tighten to 70 Nm (52 lb-ft).
- Remove the 2 transmission rear support insulator nuts. Separate the transmission rear support insulator from the transmission mount.
- To install, reverse the removal procedure.
