Gearshift Lever
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

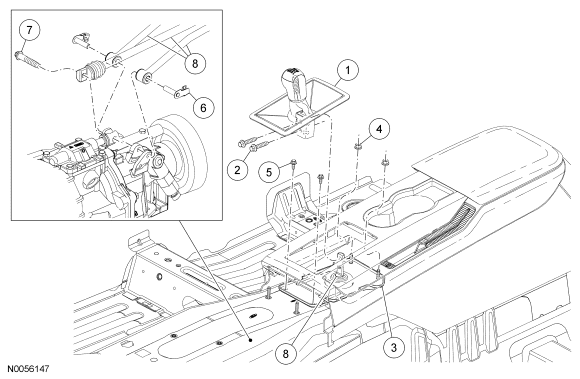

| Item | Part Number | Description |
|---|---|---|
| 1 | 7C392 | Gearshift lever knob and boot |
| 2 | - | Gearshift lever bolt (part of 7C392) |
| 3 | 7Z206 | Gearshift lever shield |
| 4 | W702751-S441 | Gearshift lever shield nut |
| 5 | W505424-S438 | Gearshift lever shield bolt |
| 6 | 7314 | Gearshift lever retainer |
| 7 | W711489-S439 | Gearshift lever bolt |
| 8 | 7400 | Gearshift lever assembly |
- Remove the gearshift lever knob and boot.
- Remove the upper gearshift lever bolts and the upper gearshift lever.
- To install, tighten to 35 Nm (26 lb-ft).
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
- Remove the driveshaft. For additional information, refer to DRIVESHAFT .
- Remove the 4 subframe cross brace bolts and the subframe cross brace.
- To install, tighten to 48 Nm (35 lb-ft).
- Using a suitable transmission jack, support the transmission.
- Remove the 4 rear transmission mount outer bolts.
- To install, tighten to 63 Nm (46 lb-ft).
- Lower the transmission.
- Remove the 2 rear gearshift lever nuts.
- Remove the gearshift lever assembly.

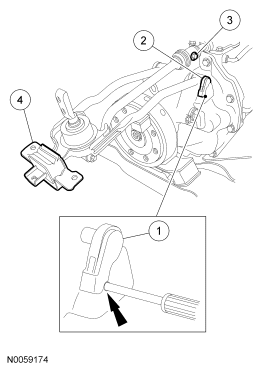

- Insert a pick into the lower hole to unlock the clip.
- Rotate the gearshift lever retainers, then remove the retainers.
- Remove the gearshift lever bolt.
- Remove the gearshift lever assembly from the vehicle.
- To install, tighten to 40 Nm (30 lb-ft).
- To install, reverse the removal procedure.
- Make sure to snap the gearshift lever retainers into the locked position.
- Carefully position the gearshift lever into the lower shift boot. Make sure the lever is through the boot.
