Transmission Case: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Handle | 205-D055 (D81L-4000-A) | |
| Installer, Bearing Cup | 204-039 (T77F-1217-B) | |
| Installer, Bearing Cup | 204-080 (T83P-1104-AH1) | |
| Installer, Rear Axle Oil Seal | 205-155 (T80T-4000-Y) |

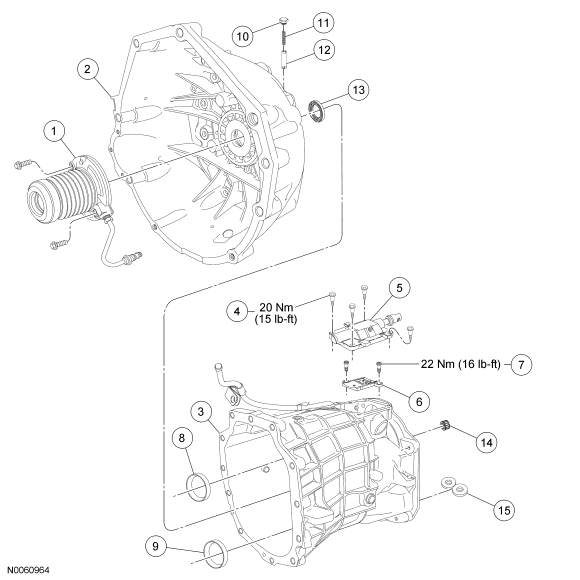

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A508 | Clutch slave cylinder |
| 2 | 6392 | Clutch housing |
| 3 | 7005 | Transmission main case |
| 4 | - | Shift cover bolt (4 required) |
| 5 | 7C453 | Shift cover assembly |
| 6 | 7F476 | Shift guide plate |
| 7 | - | Shift guide plate bolt (2 required) |
| 8 | - | Output shaft bearing cup |
| 9 | - | Countershaft bearing cup |
| 10 | - | Shift detent plug |
| 11 | 7234 | Shift detent spring |
| 12 | - | Shift detent |
| 13 | 7052 | Input shaft seal |
| 14 | 7127 | Top shift rail bearing |
| 15 | - | Magnets |
