Output Shaft: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Remover, Drive Pinion Bearing Cone	205-D002 (D79L-4621-A) or equivalent
Courtesy of FORD MOTOR CO.	Installer, Drive Pinion Bearing Cone	205-011 (T57L-4621-B)
Courtesy of FORD MOTOR CO.	Remover/Installer, Bearing Tube	308-025

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM or XT-5-QMC (US); CXT-5-LM12 (Canada)	MERCON® V
Threadlock and Sealer TA-25	WSK-M2G351-A5

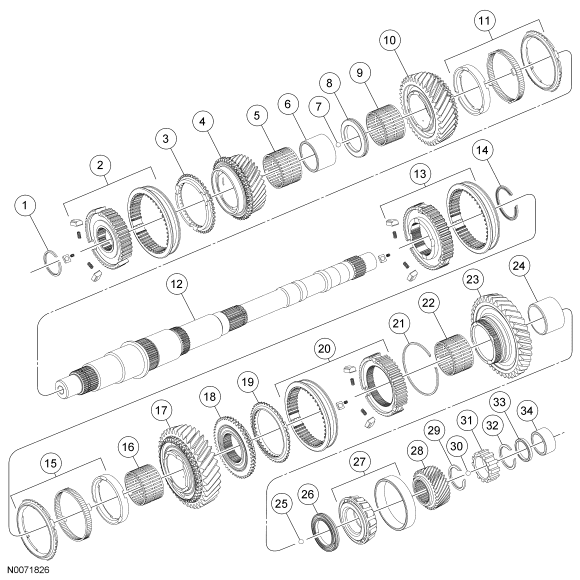

Fig 1: Disassembled View Of Transmission Internal Components - Output Shaft

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7L271	Retaining ring (part of spring kit)
2	7124	3rd/4th gear synchronizer assembly
3	7107	3rd/4th gear synchronizer blocking ring
4	7B340	3rd gear
5	7025	3rd gear needle bearing kit
6	7N193	3rd gear bushing
7	7L271	Check ball (part of spring kit)
8	7L271	Thrust washer (part of spring kit)
9	7025	2nd gear needle bearing kit
10	7102	2nd gear
11	7107	1st/2nd gear synchronizer cones assembly (3 piece)
12	7061	Output shaft
13	7124	1st/2nd gear synchronizer assembly
14	7L271	Retaining ring (part of spring kit)
15	7107	1st/2nd gear synchronizer cones assembly (3 piece)
16	7025	1st gear needle bearing
17	7100	1st gear
18	7124	Reverse clutch cone
19	7107	Reverse gear synchronizer blocking ring
20	7124	Reverse gear synchronizer assembly
21	7124	Retaining ring
22	7025	Reverse needle bearing
23	7124	Reverse driven gear
24	7N193	Reverse gear bushing
25	7L271	Check ball (part of spring kit)
26	7L271	Selector gate (part of spring kit)
27	7025	Main shaft rear bearing and cup
28	7K316	Main shaft 5th gear
29	7L271	Retaining ring (part of spring kit)
30	7L271	Check ball (part of spring kit)
31	7H150	Output shaft speed (OSS) sensor ring
32	7L271	Retaining ring (part of spring kit)
33	7L271	Spacer (part of spring kit)
34	7025	Extension housing bearing bushing
