Input Shaft and Bearing: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Remover, Driver Pinion Bearing Cone	205-D002 (D79L-4621-A) or equivalent
Courtesy of FORD MOTOR CO.	Installer, Drive Pinion Bearing Cone	205-011 (T57L-4621-B)
Courtesy of FORD MOTOR CO.	Remover/Installer, Bearing Tube	308-024 (T75L-7025-B)

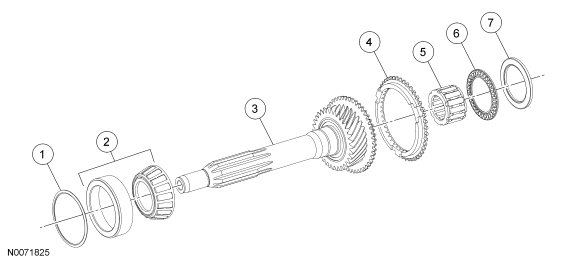

Fig 1: Disassembled View Of Transmission Internal Components - Input Shaft

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7L172	Shim kit
2	7025	Input shaft front bearing and cup assembly
3	7017	Input shaft
4	7107	3rd/4th gear synchronizer blocking ring
5	7025	Input shaft pocket bearing kit
6	7025	Input shaft thrust bearing kit
7	7L271	Input shaft thrust washer (part of spring kit)
