Countershaft Bearing: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Drive Pinion Bearing Cone | 205-D002 (D79L-4621-A) or equivalent |

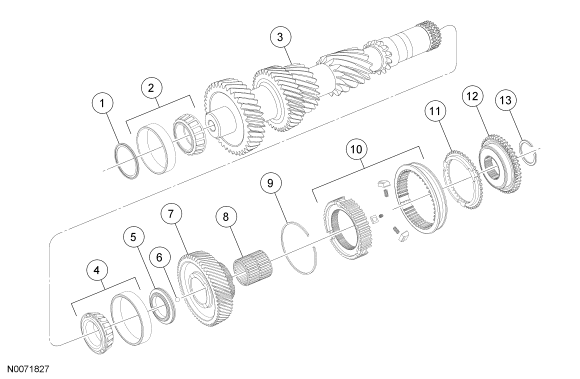

| Item | Part Number | Description |
|---|---|---|
| 1 | 7L172 | Shim |
| 2 | 7025 | Countershaft front bearing and cup |
| 3 | 7113 | Countershaft |
| 4 | 7025 | Countershaft rear bearing and cup |
| 5 | 7L271 | Thrust bearing (part of spring kit) |
| 6 | 7L271 | Check ball (part of spring kit) |
| 7 | 7124 | Countershaft 5th gear (part of 5th gear and synchronizer assembly) |
| 8 | 7025 | Countershaft 5th gear needle bearing |
| 9 | - | Retaining ring (part of 5th gear synchronizer assembly) |
| 10 | 7124 | Countershaft 5th gear and synchronizer assembly |
| 11 | 7107 | 5th gear synchronizer blocking ring |
| 12 | 7124 | 5th gear clutch cone |
| 13 | 7L271 | Retaining ring (part of spring kit) |
