Countershaft Bearing: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Bearing | 308-061 (T77J-7025-L) | |
| Installer, Drive Pinion Bearing Cone | 205-011 (T57L-4621-B) | |
| Installer, Input Shaft Bearing | 308-062 (T77J-7025-M) | |
| Installer, Mainshaft Front Bearing | 308-081 (T82T-7003-DH) | |
| Remover, Drive Pinion Bearing Cone | 205-D002 (D79L-4621-A) or equivalent | |
| Remover/Installer, Bearing Tube | 308-024 (T75L-7025-B) | |
| Remover/Installer, Bearing Tube | 308-052 (T77J-7025-B) |
Material
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

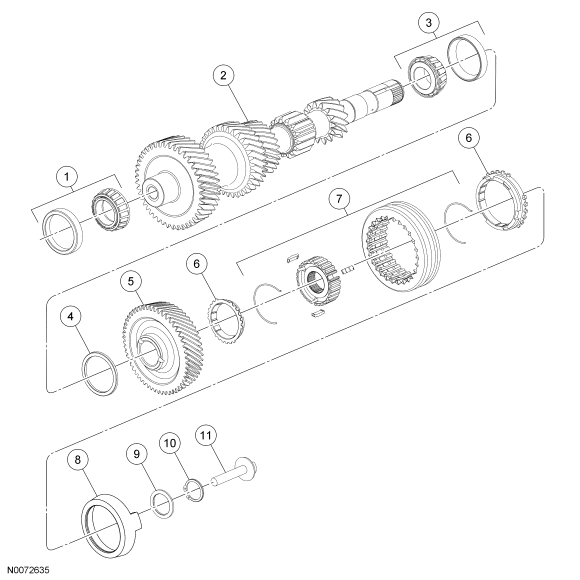

| Item | Part Number | Description |
|---|---|---|
| 1 | 7F431 | Countershaft front bearing and cup |
| 2 | 7113 | Countershaft |
| 3 | 7F431 | Countershaft rear bearing and cup |
| 4 | 7L172 | Countershaft rear bearing adjustment shim |
| 5 | 7144 | Countershaft 5th gear |
| 6 | 7107 | 5th gear synchronizer blocking rings |
| 7 | 7124 | 5th gear synchronizer assembly |
| 8 | 7M000 | Reverse brake ring |
| 9 | 7G042 | Thrust washer |
| 10 | 7059 | 5th gear synchronizer retaining ring |
| 11 | 7L276 | Oil pick up funnel |
