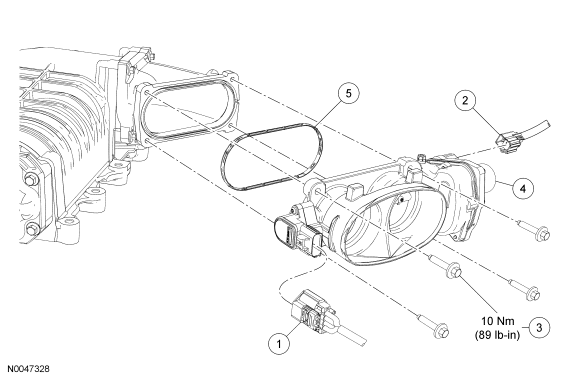

Throttle Body: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14A464 |
Throttle position (TP) sensor electrical connector (part of 12B637) |
| 2 |
14A464 |
Electronic throttle control electrical connector (part of 12B637) |
| 3 |
N806154 |
Throttle body (TB) bolt (4 required) |
| 4 |
9F991 |
TB |
| 5 |
9E936 |
TB-to-TB spacer gasket |
