Throttle Body: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

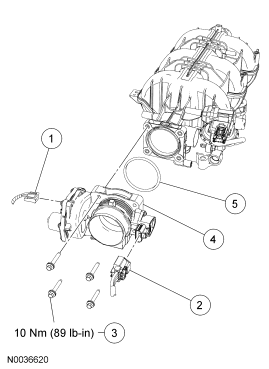

| Item |
Part Number |
Description |
| 1 |
14A464 |
Throttle body (TB) electrical connector |
| 2 |
14A464 |
Throttle position (TP) sensor electrical connector |
| 3 |
W503280 |
TB bolt (4 required) |
| 4 |
9F991 |
TB |
| 5 |
- |
TB gasket |
