Torque Converter Hub Seal: Assembly

WARNING: This page is about a different car, the 2005 Mercury Montego and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the torque converter hub seal in place.

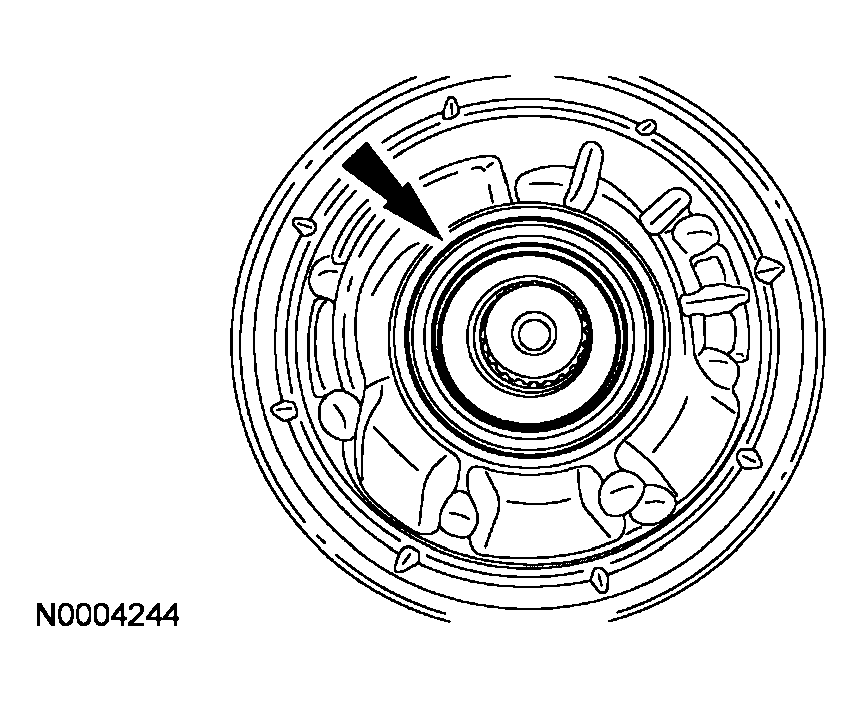

    Fig 1: Positioning Torque Converter Hub Seal In Place
    G03991830Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the torque converter hub seal.

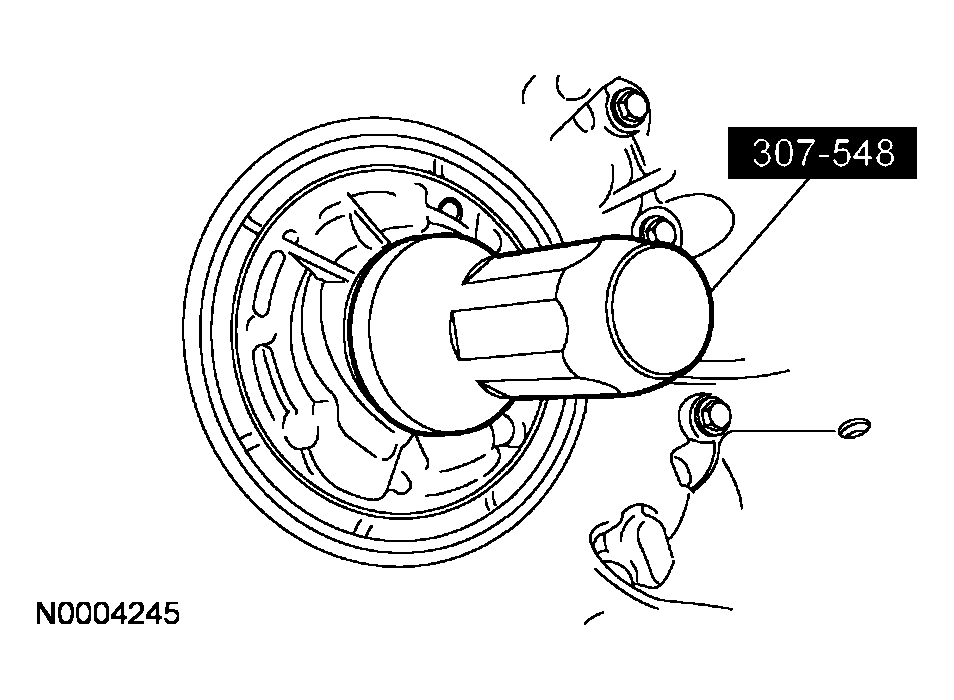

    Fig 2: Installing Torque Converter Hub Seal
    G03991831Courtesy of FORD MOTOR CO.
  3. Install the torque converter.
    Fig 3: Installing Torque Converter
    G03991832Courtesy of FORD MOTOR CO.
  4. Install the transaxle. For additional information, refer to TRANSAXLE .
