Positive Crankcase Ventilation (PCV) Valve: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

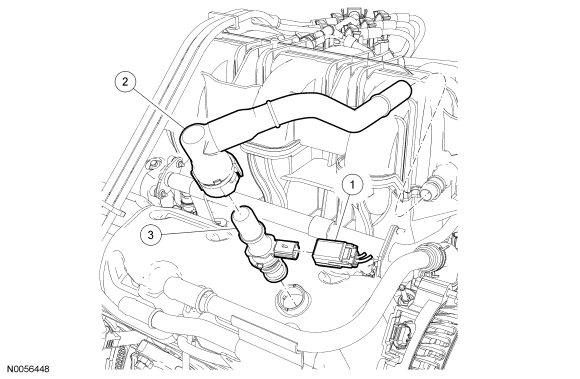

Fig 1: Exploded View Of Positive Crankcase Ventilation (PCV) Valve - 4.0L SOHC Engine
GF0000690Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 PCV valve electrical connector
2 - Crankcase ventilation tube-to-PCV valve quick connect coupling (part of 6K817)
3 6A666 PCV valve

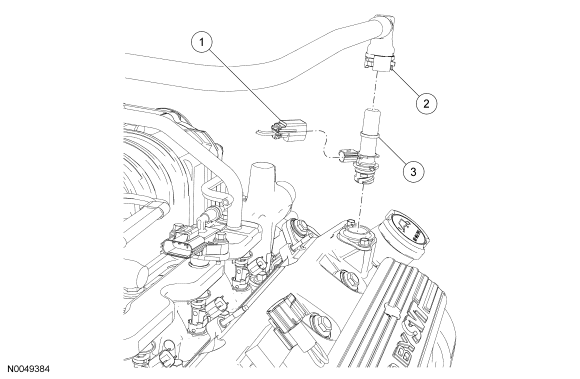

Fig 2: Exploded View Of Positive Crankcase Ventilation (PCV) Valve - 5.4L 4V Engine
GF0000691Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 PCV valve electrical connector
2 - Crankcase ventilation tube-to-PCV valve quick connect coupling (part of 6K817)
3 6A666 PCV valve
