External Sealing

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not try to stop a fluid leak by increasing the torque beyond specifications. This may cause damage to the transmission case threads.

The transmission has the following parts to prevent external fluid leakage:

Gaskets
Lip-type seals
O-ring seals
Seal rings
Seal grommets
Seal washers
Thread sealant

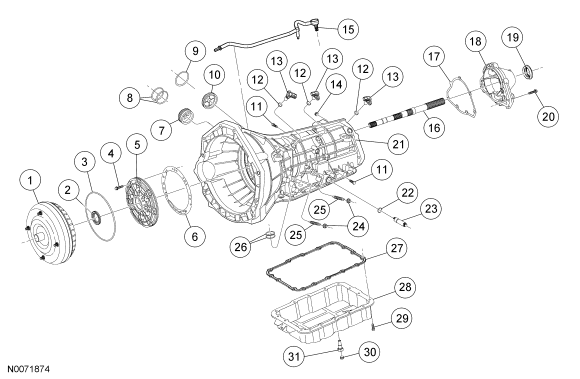

Fig 1: Exploded View Of External Sealing

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7902	Torque converter assembly
2	7A248	Seal assembly - front fluid pump
3	7A248	Seal - front fluid pump
4	W704892-S300	Screw and washer assembly (8 required)
5	7G187	Fluid pump
6	7A136	Gasket - fluid pump
7	7D027	Cover - overdrive servo
8	W703119-S300	Seals - overdrive servo cover (2 required)
9	W702969-S300	Seal - intermediate servo cover
10	7D027	Cover - intermediate servo
11	390318-S2	Plugs - pipe (2 required)
12	W702981-S300	O-ring seals - sensor-to-case (3 required)
13	7H103	Sensor assemblies - (3 required)
14	6026	Plug - case
15	7034	Vent assembly
16	7060	Shaft - output
17	7086	Gasket - extension housing
18	7A039	Extension housing assembly
19	7052	Seal - extension housing
20	W500311-S309	Screw - extension housing (7 required)
21	7005	Case assembly
22	7B498	Seal - manual lever
23	7A256	Manual lever
24	7C492	Screws - band adjuster (2 required)
25	71000-S100	Nuts - band adjuster (2 required)
26	W705928-S300	O-ring seals (2 required)
27	7A191	Gasket - fluid pan
28	7A194	Fluid pan
29	W500213-S309	Screw - fluid pan (16 required)
30	W704999	Plug - short hex
31	7A101	Plug - fluid drain

CAUTION: Do not try to stop a fluid leak by increasing the torque beyond specifications. This may cause damage to the transmission case threads.

The transmission has the following parts to prevent external fluid leakage:

Gaskets
Lip-type seals
O-ring seals
Seal rings
Seal grommets
Seal washers
Thread sealant
