Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

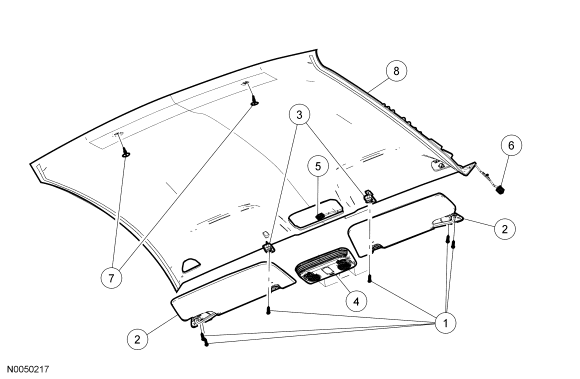

| Item | Part Number | Description |
|---|---|---|
| 1 | N806664 | Sun visor screws/sun visor arm clip screws (6 required) |
| 2 | 6304104 RH/ 6304105 LH | Sun visors (2 required) |
| 3 | 6304132 | Sun visor arm clips (2 required) |
| 4 | 519A58 | Overhead console |
| 5 | - | Overhead console electrical connector (part of 14A464) |
| 6 | - | Headliner electrical connector (part of 14484) |
| 7 | W709950 | Headliner pin-type retainers (2 required) |
| 8 | 6351916 | Headliner |
