Luggage Compartment Lid Latch: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Multi-Purpose Grease Spray XL-5 |
ESB-M1C93B |

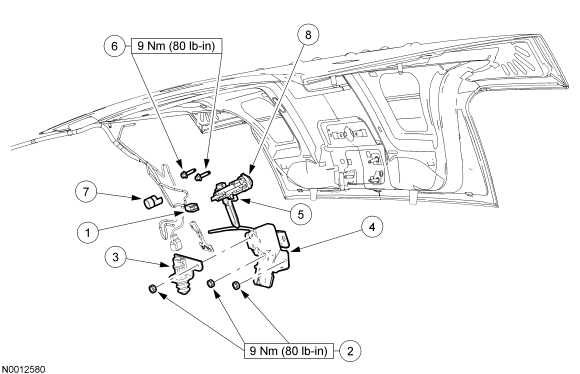

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Luggage compartment lid latch electrical connector (part of 19B516) |
| 2 | N807260 | Luggage compartment lid latch nuts (3 required) |
| 3 | 19A434 | Luggage compartment lid ajar switch (early build) |
| 4 | 43200 | Luggage compartment lid latch |
| 5 | - | Luggage compartment lid anti-theft inhibit switch electrical harness (if equipped) (part of 6343262) |
| 6 | W500614 | Luggage compartment lid lock cylinder bolts (2 required) |
| 7 | - | Luggage compartment lid release cable (part of 43200) |
| 8 | 43262 | Luggage compartment lid lock cylinder |
